The Helieon lighting system is the first plug-and-play, sustainable solid-state lighting module to integrate high-efficiency precision lighting with an easy-to-use socketed solution to accelerate innovation and enable the mass adoption of solid-state lighting.
The Helieon Sustainable Light Module is a plug‑and‑play solid‑state lighting solution that combines Molex interconnect technology with Bridgelux LEDs. It offers a socketed design that lets users replace or upgrade the light source like a traditional bulb, with selectable beam angles, color temperatures, and light output.

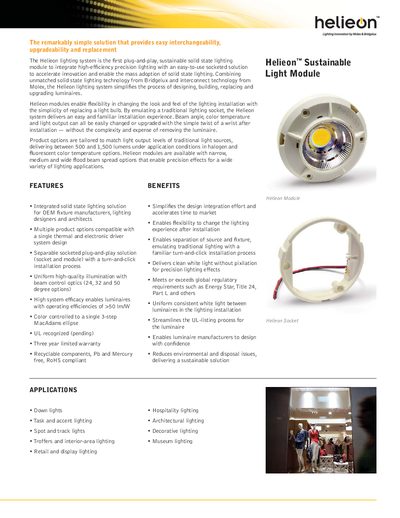

The leaflet provides performance data, mechanical dimensions, photometric results, and environmental compliance details, highlighting benefits such as high efficacy (>50 lm/W), easy installation, and RoHS‑compliant, recyclable components.
| Maximum DC Forward Current | 2000 mA |
|---|---|
| Minimum DC Forward Current | 600 mA |
| Maximum Peak Pulsed Current | 2800 mA |
| Maximum Reverse Voltage | -20 V |
| Operating Temperature | -40 °C to +95 °C |
| Storage Temperature | -40 °C to +105 °C |
| Lumen Output Range | 500 to 1,500 lumens |
The Helieon Sustainable Light Module is available in 24° narrow flood, 32° medium flood and 50° wide flood viewing angle options.
A maximum duty cycle of 10% is recommended when operating the Helieon module at the maximum peak pulsed current.
The Helieon Sustainable Light Module is projected to maintain greater than 70% of its lumen output after 50,000 hours.
