This manual introduces how to use manual crimping tools and the maintenance of tools. The main functions include setting the pressure value of manual crimping tools and maintenance of manual crimping tools.

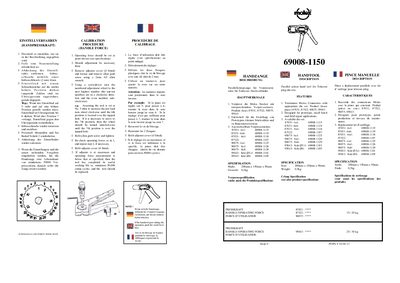

This document provides step‑by‑step instructions for adjusting the operating force of the Molex 69008‑1150 parallel action hand tool. It covers removal of the adjuster cover, turning the adjustment wheel to the next position, re‑checking forces, and re‑installing the cover.
The guide also lists compatible die sets, spare parts, safety warnings, and specifications such as size, weight, and required handling forces. Maintenance procedures, including cleaning, lubrication, and part replacement, are described to ensure reliable tool performance. This manual is written in German.
| Handle Operating Force (die set 87522) | 15–20 kg |
|---|---|
| Handle Operating Force (die set 95043) | 25–30 kg |
Push the small lever to release the jammed tool.
