This document is about the instruction manual of the manual crimping pliers, mainly introducing the use method and adjustment method of the manual crimping pliers.

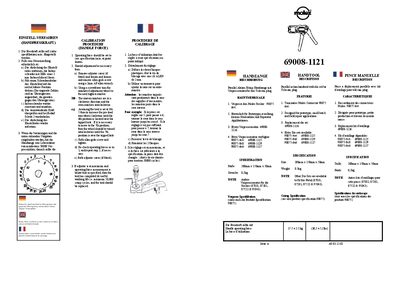

This manual describes the Molex 69008-1121 parallel action hand tool used for crimping Molex 90075 6x4 telecom connectors. It includes a description of the tool, its features, and the available die sets and replacement parts.
The document provides step‑by‑step procedures for calibration, operation, and maintenance, as well as specifications, safety warnings, and recommended spare parts for the 69008 series.
| Size | 200 mm × 150 mm × 50 mm |
|---|---|
| Weight | 0.5 kg |
| Operating force (minimum) | 17.5425 kg (8.5 lb + 5.5 lb) |
| Tool life (crimp cycles) | Minimum 50,000 cycles |
The operating force should be set to the minimum specified in the specification, about 17.54 kg (8.5 lb + 5.5 lb).
The tool is rated for at least 50,000 crimp cycles; after that it should be replaced.
