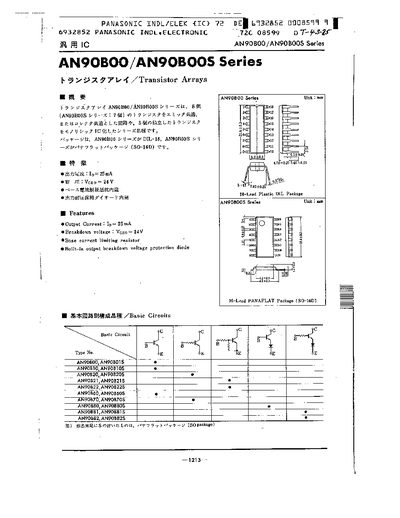

The AN90B00/AN90B00S series is a family of transistor arrays offered by Panasonic. The document provides detailed electrical characteristics, absolute maximum ratings, and typical application circuits.
Key information includes output current, breakdown voltage, and the available 18‑lead plastic DIL and 16‑lead SO‑16D (PANAFLAT) packages, along with test circuit diagrams for verification.
| Output Current (Ip) | 25 mA |
|---|---|
| Breakdown Voltage (Vero) | 24 V |
| Maximum Voltage Rating | 24 V |
| Package (DIL) | 18‑Lead Plastic DIL |
| Package (SO‑16D) | 16‑Lead PANAFLAT (SO‑16D) |
The output current (Ip) is specified as 25 mA.
The breakdown voltage (Vero) is 24 V.
