The Xilinx XQ4000X Series FPGAs are high-performance, multifunctional, and low-power FPGAs.

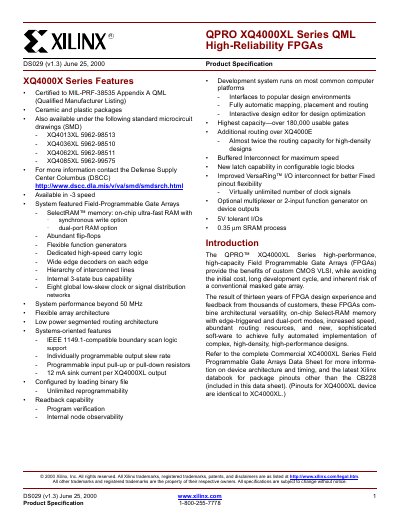

The QPRO XQ4000XL series are high‑performance, high‑capacity Field‑Programmable Gate Arrays (FPGAs) certified to MIL‑PRF‑38535 Appendix A QML for military‑grade reliability. They offer selectable on‑chip SelectRAM™ memory, abundant flip‑flops, high‑speed carry logic, and extensive I/O flexibility, including 5 V‑tolerant pins and programmable slew rates.
The devices are available in ceramic and plastic packages (e.g., CB228, PG475) and support a wide range of operating conditions, with supply voltages from 3.0 V to 3.6 V, temperature limits up to +150 °C (ceramic) or +125 °C (plastic), and up to 12 mA sink current per output. Detailed electrical, timing, and pin‑out specifications are provided for each speed‑grade and package variant.
| Maximum Logic Cells (XQ4085XL) | 7448 |
|---|---|
| Maximum Sink Current per Output | 12 mA |
| Operating Temperature (Ceramic) | +150 °C |
| Package Types | CB228, PG475, PG411, etc. |
The XQ4000XL series is certified to MIL‑PRF‑38535 Appendix A QML (Qualified Manufacturer Listing).
The recommended supply voltage is between 3.0 V and 3.6 V for both ceramic and plastic versions.
Each output can sink up to 12 mA.
