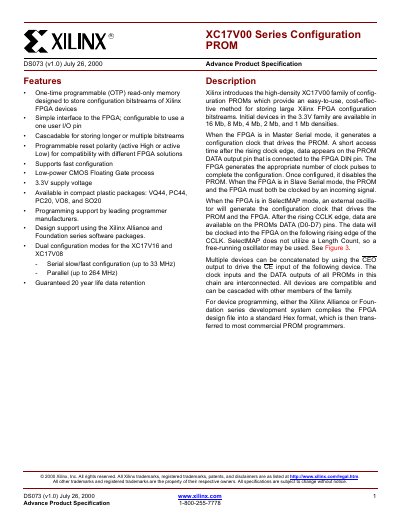

The document introduces the Xilinx XC17V00 family of configuration PROMs, which provides an easy-to-use, cost-effective method for storing large Xilinx FPGA configuration bitstreams.
The XC17V00 series are one‑time programmable (OTP) configuration PROMs designed to store Xilinx FPGA bitstreams. They support both serial (slow/fast) and parallel configuration modes, offer programmable reset polarity, and can be cascaded for larger memories. The devices are available in 1 Mb to 16 Mb densities and use a low‑power CMOS floating‑gate process.
The datasheet details pin functions, package options (VQ44, PC44, V08, PC20, SO20), electrical limits, AC characteristics, and ordering codes. It also describes programming requirements, standby mode behavior, and how to cascade multiple PROMs for daisy‑chain configurations.
| Supply voltage (VCC) | 3.0 V – 3.6 V |
|---|---|
| Programming voltage (VPP) | –0.5 V to +12.5 V |
| Storage temperature range | –65 °C to +150 °C |
| Available densities | 1 Mb, 2 Mb, 4 Mb, 8 Mb, 16 Mb |
| Package types | VQ44, PC44, V08, PC20, SO20 |
The device operates from a 3.0 V to 3.6 V supply voltage (VCC).
Yes, the RESET/OE pin polarity can be programmed as either active High or active Low.
The device can be stored from –65 °C up to +150 °C.
The series is offered in VQ44, PC44, V08, PC20, and SO20 plastic packages.
