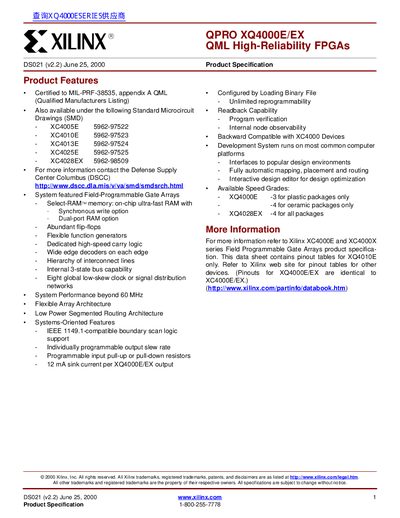

This document provides the product specification of Xilinx, including the features and characteristics of the product. The product is certified to MIL-PRF-38535 and is available in multiple models and standard microcircuit drawings. The product features include programmable gate arrays, ultra-fast RAM with synchronous write option, flexible function generators, dedicated high-speed carry logic, wide edge decoders, hierarchy of interconnect lines, and internal 3-state bus capability. The product offers system performance beyond 60 MHz, low power segmented routing architecture, and systems-oriented features such as IEEE 1149.1-compatible boundary scan logic support.
The QPRO XQ4000E/EX series are high‑reliability field‑programmable gate arrays (FPGAs) qualified to MIL‑PRF‑38535. The document provides detailed product features, electrical characteristics, timing data, and ordering information for the various speed grades and package types.
Key sections include product features, logic and RAM capacities, voltage and temperature limits, switching characteristics for global buffers, decoders, and CLBs, as well as ordering and revision history details.
| Maximum Logic Gates | 28,000 |
|---|---|
| Maximum RAM Bits | 32,768 |
| Supply Voltage (plastic package) | 4.5 V to 5.5 V |
| Storage Temperature Range | -65 °C to +150 °C |
| Maximum Output Sink Current | 12 mA |
The storage temperature (ambient) range is –65 °C to +150 °C.
Each output can sink up to 12 mA.
The required supply voltage for plastic packages is 4.5 V to 5.5 V.
