V-HD-E-11 is a product produced by Panasonic Electronic Devices Co., Ltd. It is used for electronic circuits such as audio/visual equipment, home appliances, computers and other office equipment.

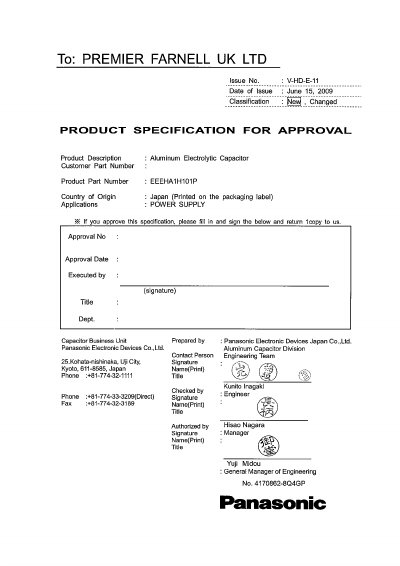

This document provides the official product specification for the Panasonic EEEHA1H101P surface‑mount aluminum electrolytic capacitor. It includes part numbers, dimensions, construction details, marking, and compliance information such as RoHS and chemical regulations.
The specification also contains extensive handling, soldering, storage, and safety guidelines to ensure reliable use in electronic equipment, covering topics like reflow temperature limits, capacitor insertion, cleaning solvents, and emergency procedures.
| Rated Voltage | 50 VDC |
|---|---|
| Capacitance | 100 µF |
| Size (G code) | 10.0 mm × 10.2 mm × 10.3 mm |
| Marking Color | Black |
| Compliance | RoHS, no ODCs, no PBBs/PBDEs |
Do not exceed a temperature of 350 °C for 3 seconds or less.
Dropped capacitors should not be used because they can be damaged mechanically or electrically.
Storage period is one year; after 12 months it should be reconditioned by applying rated voltage with a 1 kΩ resistor for 30 minutes.
