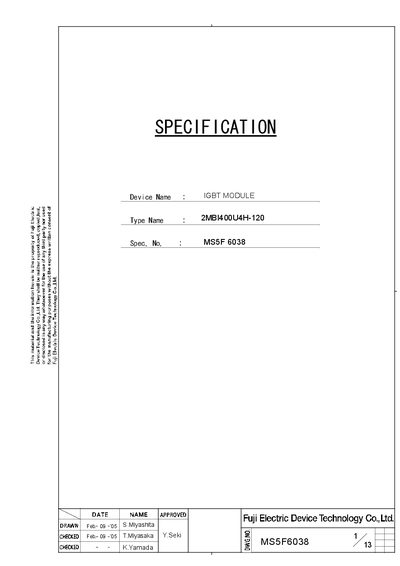

This document describes the specifications and characteristics of the IGBT module with model number 2MBI400U4H-120.
This document provides the electrical, thermal and mechanical specifications of the Fuji Electric 2MBI400U4H-120 IGBT module, including absolute maximum ratings, characteristic curves and recommended mounting torque. It also lists the applicable category, storage and transportation guidelines, and packing information.
Safety warnings, reliability test results and handling instructions are included to ensure proper use, prevent damage and maintain long‑term reliability of the module in power‑electronics applications.
| Collector‑Emitter voltage (VCES) | 1200 V |
|---|---|
| Gate‑Emitter voltage (VGES) | 20 V |
| Collector Power Dissipation (Pc) | 2045 W |
| Junction temperature | +150 °C |
| Storage temperature range | -40 to +125 °C |
| Mounting torque (M5 screws) | 2.5 to 3.5 Nm |
| Terminal torque (M6 screws) | 3.5 to 4.5 Nm |
The module is rated for a maximum collector‑emitter voltage of 1200 V.
Store the module between –40 °C and +125 °C.
Store it at 5 – 35 °C with 45 %‑75 % humidity, avoid condensation, corrosive gases, dust and mechanical shock.
