This document is a specification for a certain type of IGBT module, which mainly introduces the performance parameters, application range and usage methods of the module.

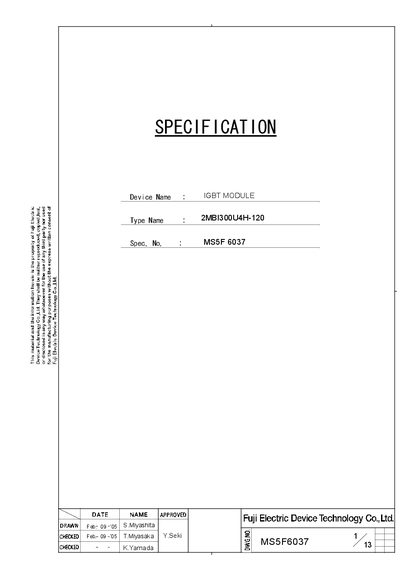

This specification document provides the electrical and thermal ratings for the Fuji Electric 2MBI300U4H-120 IGBT module. It lists absolute maximum ratings, detailed electrical characteristics, and recommended mounting torque values.
The handbook also covers reliability test methods, storage and transportation recommendations, and safety warnings to ensure proper handling and long‑term reliability of the module in power applications.
| Collector‑Emitter voltage (VCES) | 1200 V |
|---|---|
| Gate‑Emitter voltage (VGES) | 20 V |
| Collector current (Ic) (1 ms) | 57 A |
| Collector Power Dissipation (Pc) | 1470 W |
| Recommended mounting torque | 2.5 to 3.5 Nm |
The module can withstand up to 1200 V between collector and emitter.
Use a torque between 2.5 Nm and 3.5 Nm for the mounting screws.
Store it at 5 °C to 35 °C with 45 %–75 % relative humidity and avoid temperature shocks.
The gate‑emitter voltage rating is limited to 20 V.
