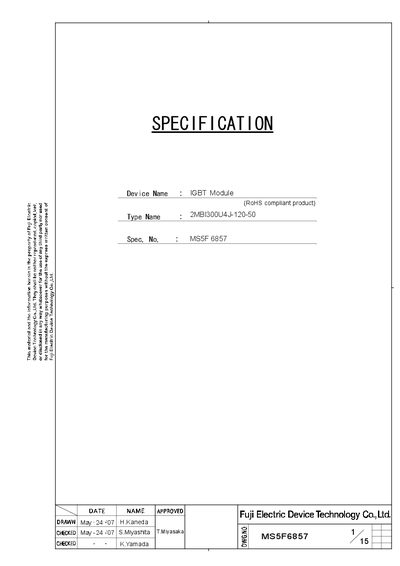

This document provides the complete technical specification for the Fuji Electric 2MBI300U4J-120-50 IGBT module. It lists absolute maximum ratings, electrical and thermal characteristics, and dimensional data required for design and integration.
The sheet also includes recommended mounting procedures for heat‑sink and PCB installation, storage and transportation guidelines, reliability test results, and safety warnings to ensure reliable operation in power applications.
| Collector‑Emitter voltage (VCES) | 1200 V |
|---|---|
| Gate‑Emitter voltage (VGES) | +20 V |
| Collector current (Icp) | 500 A |
| Continuous collector current (Ic) | 300 A |
| Collector power dissipation (Pc) | 1385 W |
| Junction temperature (Tj) | +150 °C |
| Storage temperature range (Tstg) | -40 to +125 °C |
The module is rated for a collector‑emitter voltage of 1200 V.
Initial mounting uses about one‑third of the specified torque, and the final torque should be 3.5 Nm.
The module should be stored between –40 °C and +125 °C.
