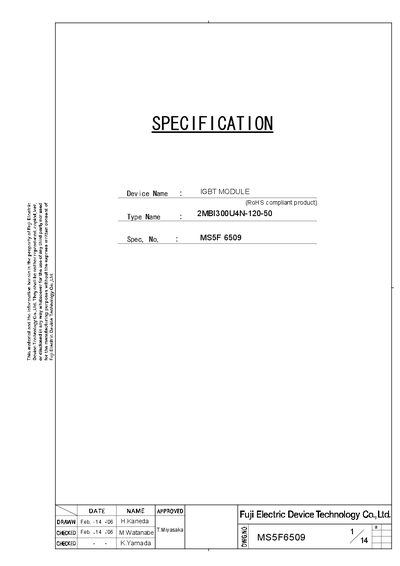

This document is a specification for IGBT MODULE 2MBI300U4N-120-50 MS5F6509. The product is RoHS compliant and has features such as thermal resistance, screw torque, and temperature characteristics.
This document provides the technical specification for the Fuji Electric 2MBI300U4N-120-50 IGBT module. It lists absolute maximum ratings, electrical and thermal characteristics, recommended mounting procedures, and handling instructions.
The specification also includes reliability test results, safety warnings, and packaging/labeling details to ensure proper use and compliance with RoHS directives.
| Collector‑Emitter voltage (VCES) | 1200 V |
|---|---|
| Gate‑Emitter voltage (VGES) | +20 V |
| Collector Power Dissipation (Pc) | 1385 W |
| Junction temperature (Tj) | +150 °C |
| Storage temperature range (Tstg) | -40 to +125 °C |
| Screw mounting torque (heat sink) | 3.5 Nm |
| Terminal torque | 4.5 Nm |
The module is rated for a maximum collector‑emitter voltage of 1200 V.
Store the module at temperatures between –40 °C and +125 °C.
The terminal screws should be tightened to 4.5 Nm.
