FUJI ELECTRIC - SPECIFICATION Device Name : Type Name : Spec. No. : H04-004-07b IGBT MODULE 2MBI450U4N-120-50 Manual

2MBI450U4N-120-50 MS5F6507 is an IGBT module produced by Fuji Electric.

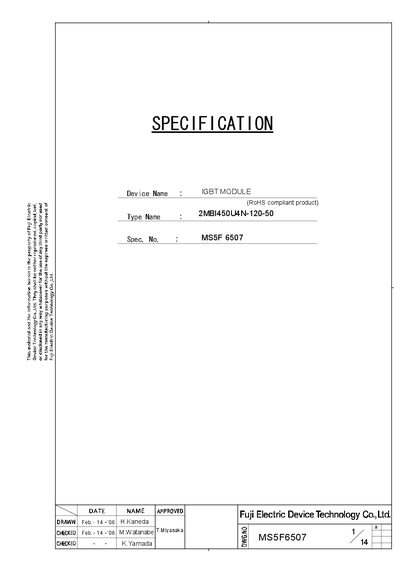

FUJI ELECTRIC - SPECIFICATION Device Name : Type Name : Spec. No. : H04-004-07b IGBT MODULE 2MBI450U4N-120-50 Manual - cover page
Brand
FUJI
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
14
File format
PDF
File size
548 KB
Published
02 May, 2012
Updated
30 September, 2023
Model
H04-004-07B
MD5 checksum
E8A4038E7A4E73231587B25CB197C63F
PDF
FUJI ELECTRIC - SPECIFICATION Device Name : Type Name : Spec. No. : H04-004-07b IGBT MODULE 2MBI450U4N-120-50 Manual PDF

About this manual

This document provides the technical specifications for the Fuji Electric 2MBI450U4N-120-50 IGBT module. It includes absolute maximum ratings, electrical and thermal characteristics, recommended mounting procedures, and storage guidelines.

Reliability test results, safety warnings, and handling instructions are also described to ensure proper use and long‑term performance of the module in power conversion applications.

What's inside

  • Absolute Maximum Ratings
  • Electrical Characteristics
  • Thermal Resistance Characteristics
  • Module Mounting Recommendations
  • Storage and Transportation Notes
  • Reliability Test Results
  • Warnings and Safety Precautions

Specifications

Collector‑Emitter voltage (VCES)1200 V
Gate‑Emitter voltage (VGES)+20 V
Power dissipation (Pc) per device2080 W
Recommended mounting torque (M6)4.5 Nm

Frequently asked questions

What is the maximum collector‑emitter voltage of the module?

The module can withstand up to 1200 V between collector and emitter.

How should the module be stored to avoid damage?

Store the module at 5 °C to 35 °C with 45 %–75 % humidity, avoid temperature shocks, corrosive gases and mechanical stress.
