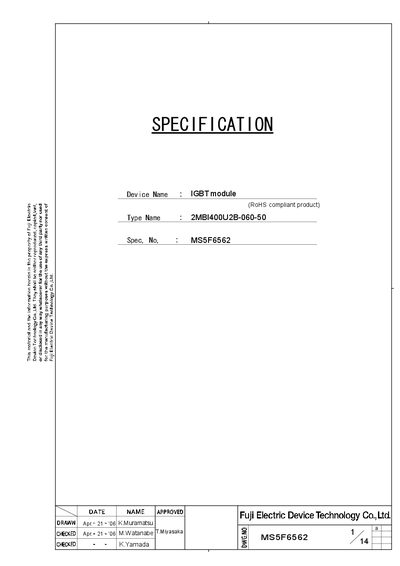

This document describes the specifications and characteristics of the RoHS compliant IGBT module product 2MBI400U2B-060-50.
This handbook provides the electrical, thermal and mechanical specifications of the Fuji Electric 2MBI400U2B-060-50 IGBT module. It includes absolute maximum ratings, characteristic curves, material composition and reliability test results.
The document also outlines storage, transportation, packing requirements and safety warnings, as well as RoHS compliance information and recommended mounting torque values for proper installation.
| Collector‑Emitter voltage (VCES) | 630 V |
|---|---|
| Gate‑Emitter voltage (VGES) | 20 V |
| Storage temperature range | -40 °C to +123 °C |
| Recommended mounting torque | 2.5–3.5 Nm |
The module is rated for a collector‑emitter voltage of 630 V.
A mounting torque between 2.5 Nm and 3.5 Nm is recommended.
Store the module between –40 °C and +123 °C.
Set -VGE to –15 V to avoid accidental turn‑on.
