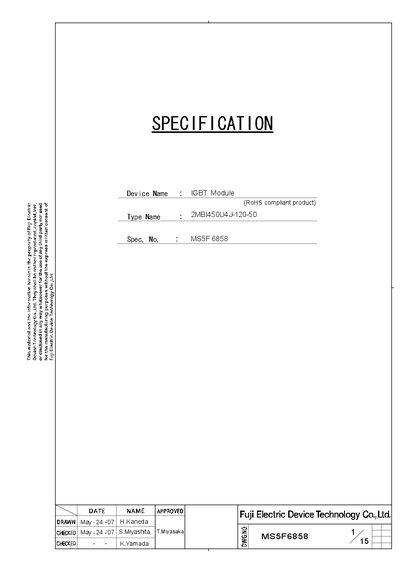

This handbook details the specifications of the Fuji Electric 2MBI450U4J-120-50 IGBT module, including absolute maximum ratings, electrical and thermal characteristics, mechanical dimensions, and recommended mounting procedures. It also lists the materials used in the module construction and compliance with RoHS directives.
Additional sections cover storage and transportation recommendations, reliability test results, and safety warnings. Users are advised to follow the specified torque values for heat‑sink and PCB mounting, observe the storage temperature limits, and ensure proper protection against over‑voltage and static electricity.
| Collector‑Emitter voltage (VCES) | 1200 V |
|---|---|
| Gate‑Emitter voltage (VGES) | +20 V |
| Maximum junction temperature (Tj) | +150 °C |
The final torque should be the full specified value of 3.5 Nm.
Use a tightening torque of 0.4 to 0.6 Nm for the PCB screws.
The module can be stored between –40 °C and +125 °C.
The module is rated for a maximum VCES of 1200 V.
