This is a specification for the MS5F6508 module, which lists its features and parameters in detail

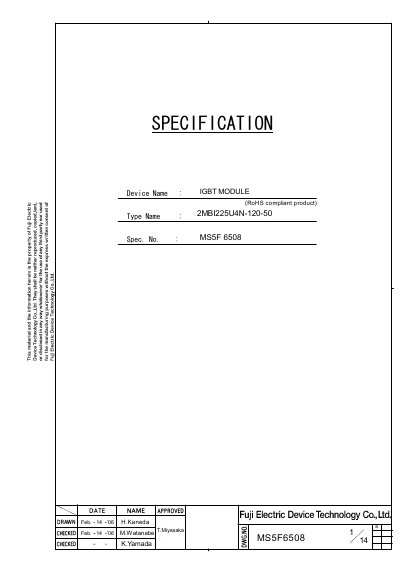

This datasheet provides detailed electrical, thermal and mechanical specifications for the Fuji Electric 2MBI225U4N-120-50 IGBT module. It includes absolute maximum ratings, typical performance curves, and recommended mounting procedures.
The document also outlines RoHS compliance, storage and handling guidelines, and extensive reliability test results to help designers integrate the module safely into power inverter applications.
| Maximum Collector Current (Ic) | 225 A |
|---|---|
| Maximum Collector‑Emitter Voltage (VCE) | 1200 V |
| Maximum Junction Temperature (Tj) | 125 °C |
| Thermal Resistance Junction‑to‑Case (Rth j‑c) | 0.0167 °C/W |
The final torque is 3.5 Nm applied in the sequence 4→3→2→1.
Store the module at 5 °C to 35 °C with 45 %–75 % relative humidity.
Yes, the document states it is a RoHS compliant product.
A negative gate‑emitter voltage of –15 V is recommended.
