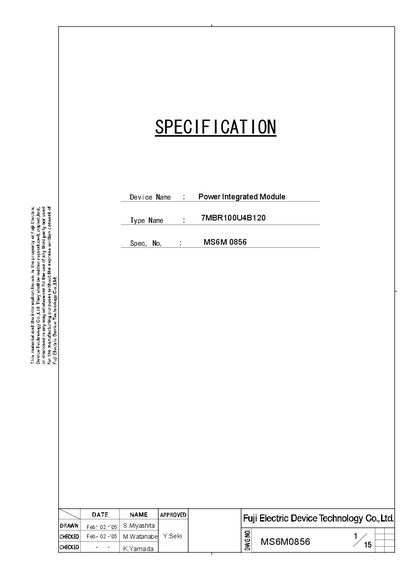

This document is a specification sheet for a power integrated module with the model number 7MBR100U4B120 MS6M 0856. The document provides detailed information about the product's outline drawing, equivalent circuit, and absolute maximum ratings.
The 7MBR100U4B120 is a power integrated module designed for high‑voltage, high‑current applications. This handbook presents the device’s electrical, thermal, and mechanical characteristics, as well as storage, handling, and safety guidelines.
Key sections include absolute maximum ratings, detailed electrical characteristics, thermal resistance data, mounting torque recommendations, and extensive reliability test results. The document also outlines proper packaging, labeling, and warnings for safe use in industrial power systems.
| Collector‑Emitter voltage (VCES) | 1200 V |
|---|---|
| Gate‑Emitter voltage (VGES) | +20 V |
| Inverter IGBT thermal resistance (Rth) | 0.32 °C/W |
| Recommended mounting torque | 2.5 – 3.5 Nm (M5) |
The device is rated for a maximum collector‑emitter voltage of 1200 V.
A torque of 2.5 to 3.5 Nm (M5 screw) is recommended.
