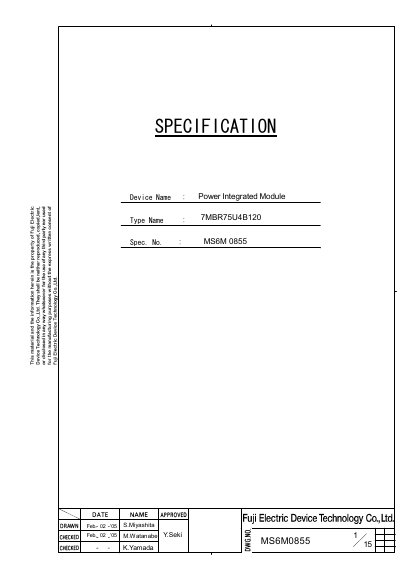

This specification document describes the Fuji Electric 7MBR75U4B120 power integrated module (model MS6M0855). It provides detailed electrical parameters such as collector‑emitter voltage, gate‑emitter voltage, and maximum collector current, as well as thermal resistance and isolation ratings.
The document also outlines recommended storage conditions, handling precautions, and extensive reliability test procedures to ensure safe and reliable operation in power conversion, braking and inverter applications.
| Gate‑Emitter voltage (VGES) max | ±20 V |
|---|---|
| Storage temperature range | 5 to 35 °C |
Store the module at a standard temperature of 5 °C to 35 °C.
The product must be used within its absolute maximum ratings, with proper fusing, and without applying mechanical stress to the terminals.
