This document is the specification of 6MBI15S-120-50, which describes the appearance size, isolation voltage, maximum current, maximum power, maximum voltage and other technical parameters of the product

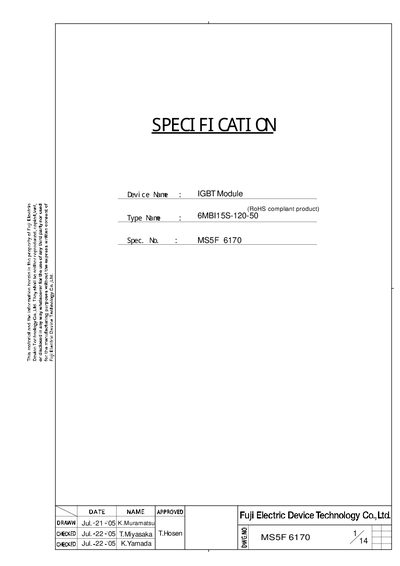

This document provides the technical specification for the Fuji Electric 6MBI15S-120-50 IGBT module. It includes outline drawings, absolute maximum ratings, electrical and thermal characteristics, material composition, RoHS compliance and reliability test results.
The specification also details storage and transportation requirements, packing and labeling information, and safety warnings such as recommended mounting torque, isolation voltage limits and precautions against static electricity and mechanical stress.
| Collector‑Emitter voltage (VCES) | 1200 V |
|---|---|
| Gate‑Emitter voltage (VGES) | +20 V |
| Continuous collector current (Ic) | 25 A |
| Pulse collector current (Ic pulse) at 25 °C | 50 A |
| Power dissipation (Pd) | 110 W |
| Junction temperature (Tj) max | 150 °C |
| Storage temperature range | -40 °C to +125 °C |
| Isolation voltage (Viso) | 2500 V (1 min) |
| Thermal resistance junction‑to‑case (Rth(j‑c)) | 1.14 °C/W |
The maximum collector‑emitter voltage is 1200 V.
Store the module between –40 °C and +125 °C.
Yes, the module is RoHS compliant.
