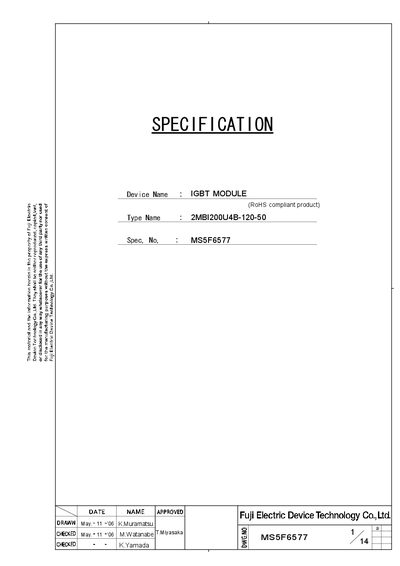

MS5F6577 is an IGBT MODULE.
The 2MBI200U4B-120-50 is an IGBT power module designed for high‑voltage, high‑current applications. The document provides the module’s electrical ratings, thermal characteristics, mechanical dimensions, and reliability test results.
Key information includes absolute maximum ratings, typical electrical characteristics, recommended mounting torque, storage conditions, and safety warnings such as the need for appropriate fusing and static‑discharge protection.
| Collector‑Emitter voltage (VCES) | 1200 V |
|---|---|
| Gate‑Emitter voltage (VGES) | ±20 V |
| Power dissipation (Pc) | 1040 W |
| Junction temperature | +150 °C |
| Storage temperature range | -40 to +125 °C |
| Mounting torque (screw) | 2.5 – 3.5 Nm |
The module can withstand up to 1200 V between collector and emitter.
Store it at 5 °C to 35 °C and 45 %–75 % humidity, keep temperature changes minimal, avoid corrosive gases, dust, mechanical shock, and keep terminals unprocessed.
A tightening torque of 2.5 Nm to 3.5 Nm (M5 screw) is recommended.
