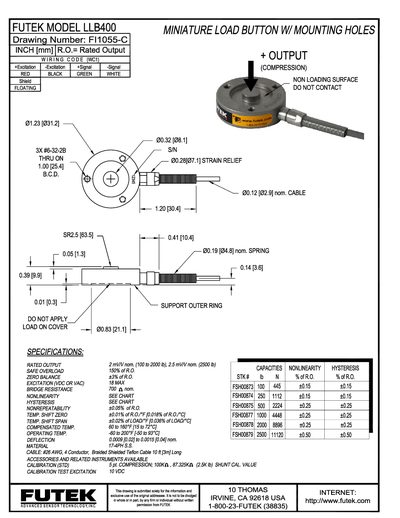

The LLB400 is a miniature load button with mounting holes, designed for compression load measurement. The sheet includes the drawing number, wiring code, and physical dimensions.
Technical specifications such as rated output, temperature ranges, bridge resistance, and material are listed, along with recommended cable type and calibration procedures. Accessories and related instruments are also referenced.
| Rated Output | 2 mV/V nominal (100‑2000 lb), 2.5 mV/V nominal (2500 lb) |
|---|---|
| Safe Overload | 150 % of Rated Output |
| Operating Temperature | 60‑200 °F (15‑93 °C) |
| Compensated Temperature Range | 60‑160 °F (15‑72 °C) |
| Cable | #26 AWG, 4‑conductor braided shielded Teflon, 10 ft (3 m) |
The LLB400 provides a rated output of 2 mV/V nominal for 100‑2000 lb and 2.5 mV/V nominal for 2500 lb.
The device can tolerate a safe overload of 150 % of its rated output.
It operates from 60 °F to 200 °F (15 °C to 93 °C).
A #26 AWG, 4‑conductor braided shielded Teflon cable, 10 ft long, is recommended.
