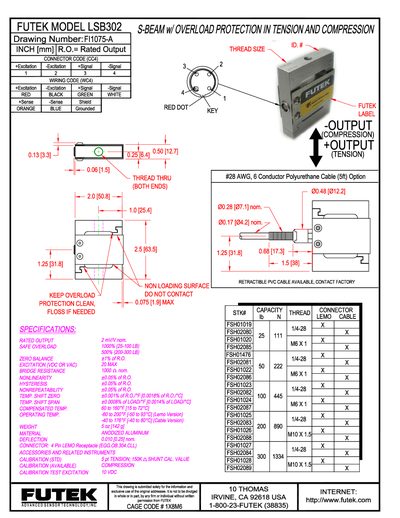

The LSB302 is a S‑beam load cell with overload protection for both tension and compression. It features a 4‑pin LEMO connector, optional retractable PVC cable, and is constructed from anodized aluminum.
Key performance specifications include a rated output of 2 mV/V, safe overload capacity of 500 % (200‑300 lb), and temperature‑compensated operation from –60 °F to 200 °F (Lemo version). Calibration options are provided for both tension and compression modes.
| Rated Output | 2 mV/V nominal |
|---|---|
| Zero Balance | 41 % of R·0 |
| Excitation Voltage | 20 V max (DC or AC) |
| Bridge Resistance | 1000 Ω |
| Nonlinearity | 20.05 % of R·0 |
| Hysteresis | 40.05 % of R·0 |
| Temperature Shift (Zero) | 0.0018 % of R·0 per °C |
| Operating Temperature (Lemo version) | -60 °F to 200 °F (‑50 °C to 93 °C) |
| Connector Type | 4‑pin LEMO receptacle |
| Weight | 5 oz (142 g) |
| Material | Anodized aluminum |
| Deflection | 0.010 mm (0.25 % nominal) |
The rated output is 2 mV/V nominal.
The sensor uses a 4‑pin LEMO receptacle connector.
It operates from –60 °F to 200 °F (‑50 °C to 93 °C).
