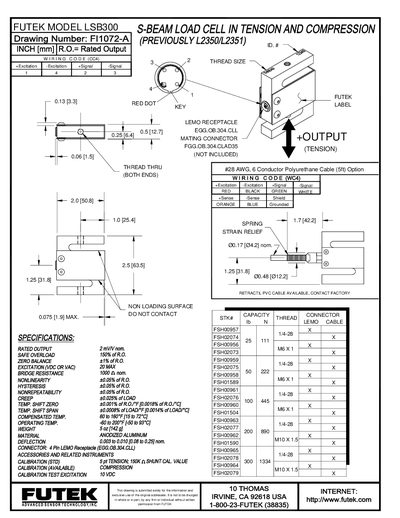

The LSB300 is a beam‑type load cell designed for both tension and compression measurements. It features a 4‑pin LEMO connector, anodized aluminum construction, and a standard 5 oz (142 g) weight.
Key performance figures include a safe overload of 150 % of rated output, zero‑balance error of 21 % of rated output, bridge resistance of 1000 Ω, and temperature compensation from 80 °F to 160 °F. The device operates from –60 °F to 200 °F and offers low hysteresis, nonlinearity, and creep specifications.
| Safe overload | 150% of rated output |
|---|---|
| Zero balance | 21% of rated output |
| Excitation voltage | 20 V (max) |
| Bridge resistance | 1000 Ω |
| Nonlinearity | 0.05% of rated output |
| Hysteresis | 0.05% of rated output |
| Creep | 0.025% of load |
| Temperature shift (zero) | 0.0018% per °C |
| Operating temperature | -60 °F to 200 °F (-50 °C to 93 °C) |
| Weight | 5 oz (142 g) |
| Material | Anodized aluminum |
| Connector | 4‑pin LEMO receptacle |
The LSB300 can safely overload up to 150 % of its rated output.
It operates from –60 °F to 200 °F (‑50 °C to 93 °C).
The load cell uses a 4‑pin LEMO receptacle connector.
