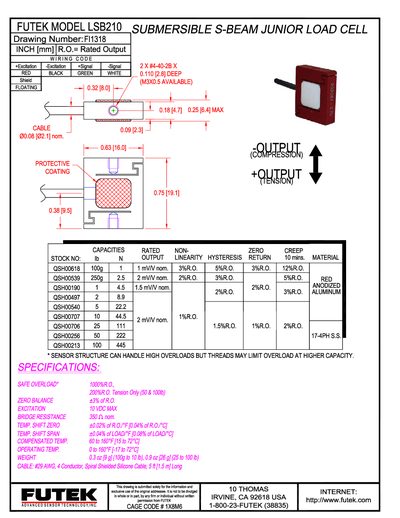

This handbook describes the Futek LSB210 submersible S‑beam junior load cell, including its wiring diagram, protective coating, and material construction. It is intended for users who need to install, calibrate, and operate the load cell in various measurement applications.
The document lists available capacities ranging from 100 g to 100 kg, shows the color‑coded wiring (Red, Black, Green, White), and notes the anodized protective coating and aluminum construction. Technical tolerances such as rated output, linearity, hysteresis, and return are also provided.
| Capacity | 100 g |
|---|---|
| Capacity | 250 g |
| Capacity | 1.5 kg |
| Capacity | 2 kg |
| Capacity | 5 kg |
| Protective Coating | Anodized |
| Material | Aluminum |
| Wiring Colors | Red, Black, Green, White |
The wiring colors are Red, Black, Green, and White.
The load cell is finished with an anodized protective coating.
