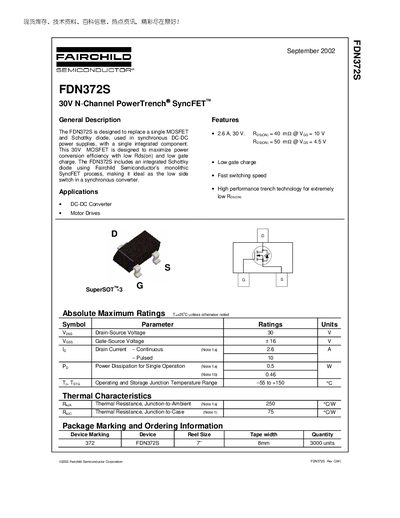

The FDN372S is a 30V N-channel power MOSFET from Fairchild Semiconductor. It features low on-resistance and low gate charge, making it ideal for use in DC-DC converters and motor drives.
The FDN372S PowerTrench SyncFET integrates a MOSFET and a Schottky diode in a single 30 V component, making it suitable as the low‑side switch in synchronous DC‑DC converters and motor‑drive applications. It maximizes power‑conversion efficiency with low on‑resistance and low gate charge.
Key specifications include a 30 V drain‑source rating, +16 V gate‑source rating, 2.6 A continuous drain current, 0.5 W power dissipation, and thermal resistances of 250 °C/W (junction‑to‑ambient) and 75 °C/W (junction‑to‑case). The device is supplied in a SuperSOT™3 package marked FDN372S.
| Drain-Source Voltage (Vds) | 30 V |
|---|---|
| Gate-Source Voltage (Vgs) | +16 V |
| Continuous Drain Current (Id, cont.) | 2.6 A |
| Pulsed Drain Current (Id, pulsed) | 10 A |
| Power Dissipation (P) | 0.5 W |
| Thermal Resistance, Junction‑to‑Ambient (RθJA) | 250 °C/W |
| Thermal Resistance, Junction‑to‑Case (RθJC) | 75 °C/W |
The device is rated for a maximum drain‑source voltage of 30 V.
The continuous drain current rating is 2.6 A.
The gate‑source voltage rating is +16 V.
