This product is a N-Channel PowerTrench® MOSFET, with a rated voltage of 60V and a rated current of 80A. The on-resistance is 3.8mΩ.

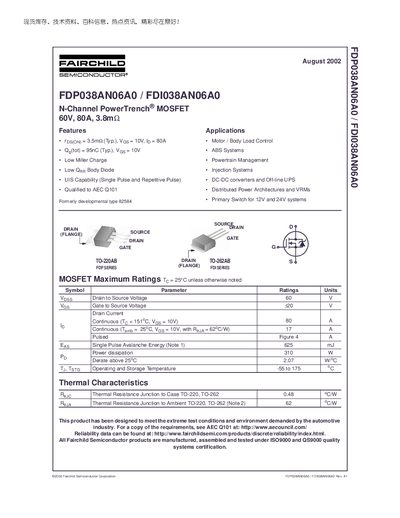

The FDP038AN06A0 is an N‑Channel PowerTrench® MOSFET designed for automotive and power‑train applications such as motor control, DC‑DC converters and off‑line UPS. It offers a low gate charge, low Miller charge and high current capability, meeting AEC‑Q101 automotive reliability standards.
Key specifications include a 60 V drain‑to‑source rating, 80 A continuous drain current, 95 nC total gate charge, and a thermal resistance of 0.48 °C·W (junction‑to‑case). The device is offered in TO‑220AB and TO‑262AB packages, with detailed electrical characteristics, typical performance curves, and PSPICE models provided for design verification.
| Drain‑to‑Source Voltage (VDS) | 60 V |
|---|---|
| Total Gate Charge (Qg) | 95 nC (typ.) |
| Thermal Resistance Junction‑to‑Case | 0.48 °C·W |
| Operating Temperature Range | -55 °C to 175 °C |
| Input Capacitance (Ciss) | 6.4 nF |
| Turn‑On Delay Time | 15 ns |
The device is rated for a maximum drain‑to‑source voltage of 60 V.
The typical total gate charge is 95 nC.
