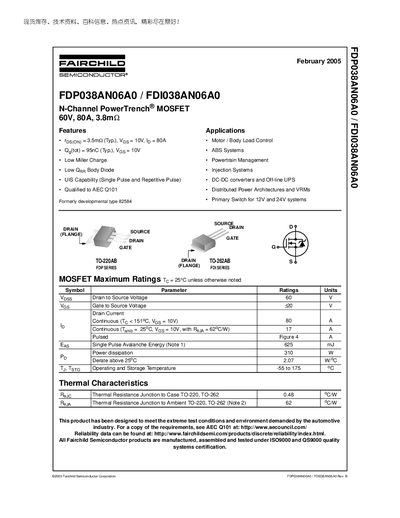

FDP038AN06A0 / FDI038AN06A0 N-Channel PowerTrench® MOSFET 60V, 80A, 3.8mΩ, Features low Miller charge, low QRR body diode, UIS capability (single pulse and repetitive pulse), qualified to AEC Q101, formerly developmental type 82584. It is suitable for automotive powertrain management, DC-DC converters and Off-line UPS, distributed power architectures and VRMs, primary switch for 12V and 24V systems.
This document provides the full specifications for the Fairchild FDPO38AN06A0 and FDIO38AN06A0 N‑Channel PowerTrench MOSFETs. It includes maximum ratings, electrical characteristics, package information, and typical performance curves for automotive and power‑train applications.
Key data such as a 60 V drain‑to‑source voltage, 80 A continuous drain current, low on‑resistance, and detailed gate‑charge information are presented along with test circuit examples and PSPICE models for design simulation.
| Drain‑to‑Source Voltage (VDS) | 60 V |
|---|---|
| Continuous Drain Current (ID) | 80 A |
The device is rated for a maximum drain‑to‑source voltage of 60 V.
It can conduct up to 80 A continuously at a gate voltage of 10 V.
