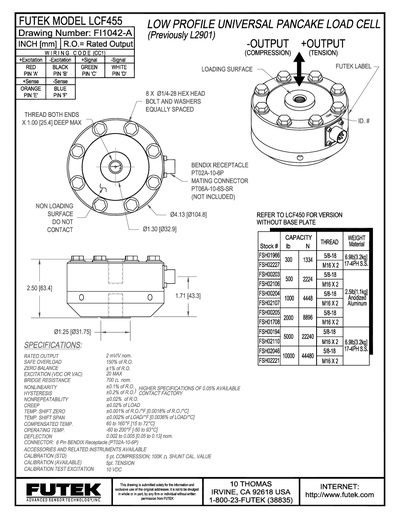

FUTEK FSH01966 Data Sheet(1)(1)
The LCF455 is a low‑profile universal pancake load cell with a rated output of 2 mV/V and a maximum excitation of 20 VDC/VAC. It features a 6‑pin BENDIX receptacle connector (PT02A-10-6P) and is supplied with a threaded mounting plate and hardware.
The sheet lists key specifications such as safe overload (150 % of rated output), zero balance (21 % of rated output), bridge resistance (700 Ω), and operating temperature range from –60 °F to 200 °F. Calibration options for compression and tension are provided, along with temperature‑compensated performance data.
Futek FSH01966 specifications
| Safe Overload | 150 % of rated output |
|---|---|
| Zero Balance | 21 % of rated output |
| Excitation Voltage | Up to 20 VDC or VAC |
| Operating Temperature | -60 °F to 200 °F (‑50 °C to 93 °C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Deflection | 0.002 to 0.005 in (0.05 to 0.13 mm) nominal |
Source: FUTEK FSH01966 Data Sheet(1)(1)
