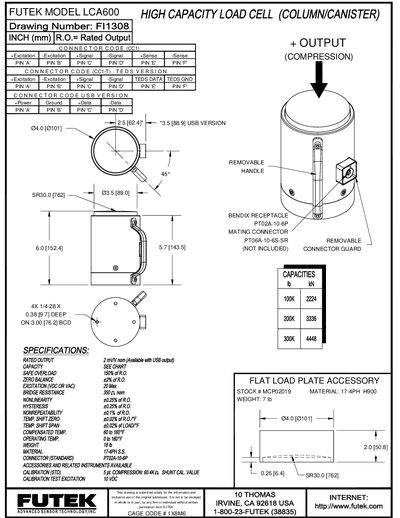

This file is the size drawing of LCA600 product
The LCA600 is a column/canister load cell designed for high‑capacity applications. It offers a rated output of 2 mV/V nominal and can be powered by either 20 V DC or AC. The device includes both a standard 6‑pin connector (PT02A‑10‑6P) and an optional USB interface for data acquisition.
Capacities range from 100 kN to 300 kN (up to 4448 lb) with a safe overload rating of 150 % of the rated output. The load cell features a stainless‑steel 17‑4PH construction, a weight of 7 lb, and temperature compensation from 60 °F to 160 °F. Detailed electrical specifications such as bridge resistance, nonlinearity, hysteresis, and temperature shift are provided.
| Maximum Capacity | 300 kN (4448 lb) |
|---|---|
| Safe Overload | 150 % of rated output |
| Excitation Voltage | Up to 20 V DC or AC |
| Bridge Resistance | 350 Ω nominal |
| Nonlinearity | 10.25 % of rated output |
| Hysteresis | 20.25 % of rated output |
| Non‑repeatability | 10.1 % of rated output |
| Temperature Compensation Range | 60 °F to 160 °F |
| Operating Temperature | 0 °F to 160 °F |
| Weight | 7 lb |
| Material | 17‑4PH stainless steel |
| Standard Connector | PT02A‑10‑6P (6‑pin) |
The load cell can measure up to 300 kN (approximately 4448 lb).
It can be excited with up to 20 V, either DC or AC.
The device operates from 0 °F to 160 °F and is compensated between 60 °F and 160 °F.
