This document is the performance specification of the PS3343A accelerometer. It describes the features of the product in detail, including measurement range, resolution, weight, connector, material, temperature range, response frequency, natural frequency, equivalent electrical noise, linearity, etc.

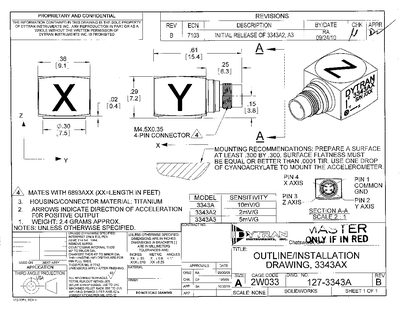

This document provides the outline drawing and installation recommendations for the Dytran 3343AX triaxial IEPE accelerometer. It includes mechanical dimensions, mounting surface requirements, connector type, and housing material.
Performance, electrical, and environmental specifications are listed, covering sensitivity, frequency response, supply voltage, current limits, shock and vibration ratings, temperature range, and sealing. The drawing also references compatible cable assemblies and calibration notes.
| Weight | 0.084 oz |
|---|---|
| Mounting surface size | ≥0.300 x 0.300 in |
| Connector type | 4‑pin |
| Housing material | Titanium |
| Full‑scale range | 42500 g |
| Frequency response | 1.2 – 5000 Hz |
| Supply current range | 2 – 20 mA |
| Compliance voltage range | +18 – +30 VDC |
| Discharge time constant | 0.3 – 0.5 s |
| Maximum shock | 3000 gpk |
| Maximum vibration | 600 gpk |
| Operating temperature range | -60 – +250 °F |
| Environmental seal | Hermetic |
The 3343AX uses a 4‑pin connector.
Prepare a flat surface at least 0.300 × 0.300 in and use a drop of cyanoacrylate to mount the device.
The device can be powered from +18 to +30 VDC with a maximum current of 20 mA.
