Specifications for the 5313A triaxial linear seat accelerometer, including weight, size, connectors, material, performance, environment, and electrical

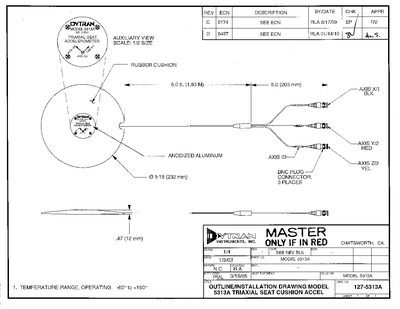

This document provides an outline and installation drawing for the Dytran 5313A tri‑axial seat cushion accelerometer, showing dimensions, mounting details, and connector locations.
It also lists the key technical specifications, including physical size, weight, connector type, sensitivity, frequency range, temperature limits, and electrical characteristics.
| Weight | 0.5 lb (227 g) |
|---|---|
| Size (Diameter x Thickness) | 29.16 x 0.47 in (232 x 12.0 mm) |
| Connector | 10 ft cable with 3 BNC plugs |
| Sensitivity (each axis) | 100 mV per g |
| Frequency range | 0.5 – 3000 Hz |
| Resonant frequency | 25 kHz |
| Operating temperature range | -60 °C to +160 °C |
| Survival temperature range | -100 °F to +275 °F |
| Supply voltage range | 2 – 20 V / +18 – +30 V |
| Output impedance | 100 Ω (typ.) |
It operates from –60 °C to +160 °C.
The device uses a 10‑ft cable terminating in three BNC plugs.
The frequency response spans from 0.5 Hz to 3000 Hz.
The nominal resonant frequency is 25 kHz.
