This file is a specification for the 7600B1 accelerometer. It details the product's input range, frequency response, sensitivity, maximum shock, noise, and other characteristics.

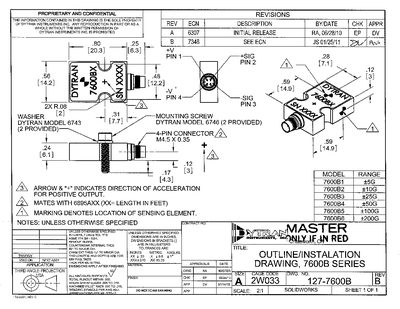

The document presents the outline drawing for the Dytran 7600B2 accelerometer, showing dimensions, mounting hardware (washers, screws, 4‑pin connector) and tolerances. It includes part numbers for mounting components such as model #6743 washers and model #6746 screws.
Performance specifications are listed for the 7600B series, covering input range, frequency response, sensitivity, operating temperature, weight, size, and electrical characteristics. The drawing also references related models and provides notes on machining tolerances and material specifications.
| Frequency Response | 0‑600 Hz |
|---|---|
| Sensitivity | 100 mV/g |
| Operating Temperature Range | -40 to +176 °F |
| Weight | Max 04 oz (3.6 g) |
| Size | 80 x 0.56 x 0.23 in |
| Connector Type | 4‑PIN, M4.5 × 0.35 |
Two mounting screws, model #6746, are provided with the unit.
The maximum operating current is 13 mA DC.
The accelerometer has a frequency response from 0 to 600 Hz.
