This PDF file is the product manual of 7600B4 type accelerometer. It introduces the features and characteristics of the product, including input range, frequency response, sensitivity, maximum shock, noise and so on.

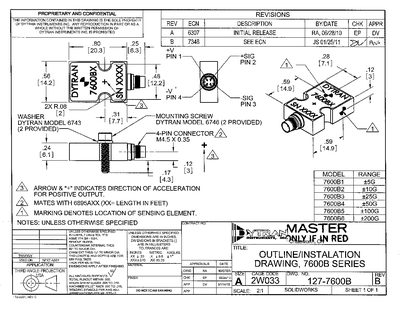

This document provides the outline drawing for the Dytran 7600B1 accelerometer, showing mounting locations, washer and screw part numbers (models 6743 and 6746), and connector details. Dimensions are given in inches with metric equivalents, and tolerances follow ASME and AWS standards.
The performance specification section lists physical, electrical, environmental, and dynamic parameters such as weight, size, input range, frequency response, sensitivity, temperature range, and output characteristics for the 7600B series devices.
| Weight (max) | 0.4 oz (3.6 g) |
|---|---|
| Size (L × W × H) | 80 × 0.56 × 0.23 in |
| Connector type | 4‑pin, M4.5 × 0.35 mm thread |
| Input range (g) | 15 g |
| Frequency response (43 dB) | 0‑2000 Hz |
| Operating temperature range | -40 to +176 °F |
| Output common‑mode voltage | + VDC |
The package includes two mounting screws (model #6746) and two mounting washers (model #6743).
The input range is 15 g.
The device operates from –40 °F to +176 °F.
It uses a 4‑pin connector with M4.5 × 0.35 mm thread.
