The document describes the specifications and performance characteristics of the model 3023A triaxial accelerometer, including weight, size, sensitivity, range, frequency response, etc.

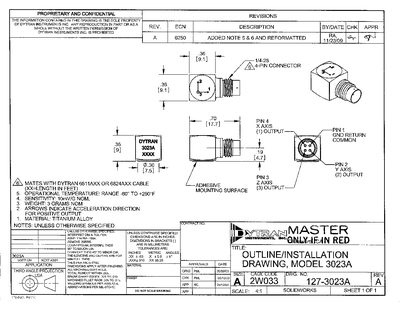

The Dytran 3023A is a triaxial accelerometer with a compact titanium‑alloy housing. It is mounted adhesively and connects via a 4‑pin Dytran cable. The device offers a measurement range of ±500 G per axis and a frequency response from 1.5 Hz to 10 kHz.
The specifications include a weight of 3 g, size of 0.36 × 0.36 × 0.36 in, and operating temperature range from –60 °F to +250 °F. Electrical requirements are +18 V to +30 VDC supply, 2‑20 mA current per axis, 100 Ω output impedance, and +10 VDC bias voltage.
| Weight | 3.0 grams |
|---|---|
| Size (H × W × D) | 0.36 × 0.36 × 0.36 inches |
| Mounting method | Adhesive mount |
| Connector type | 4‑pin |
| Housing material | Titanium alloy |
| Measurement range (each axis) | ±500 G |
| Frequency response | 1.5 to 10 000 Hz |
| Supply voltage (each axis) | +18 to +30 VDC |
| Output impedance | 100 Ω |
The accelerometer weighs 3.0 grams.
It measures 0.36 × 0.36 × 0.36 inches (height × width × depth).
Each axis can measure up to ±500 G full scale.
The device operates from +18 V to +30 VDC per axis.
