This document describes the features and characteristics of the product series with the model number DOC NO 7600B3 PS7600B3 REV C, 7424, 03/25/11, including power supply identical to strain gage sensors, variable capacitance accelerometer, differential mode, hermetically sealed, DC response, etc. The product series has different input ranges, frequency responses, sensitivities, maximum shocks, noises, etc.

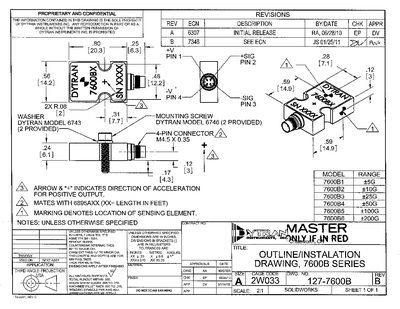

This document provides the outline drawing, mounting details, and key performance specifications for the Dytran 7600B1 variable capacitance accelerometer. It includes dimensions, connector type, and mechanical tolerances needed for proper installation.
The drawing also lists supplied accessories such as mounting screws and washers, and outlines environmental and electrical limits for the sensor's operation.
| Weight (max) | 0.4 oz (3.6 grams) |
|---|---|
| Size (L × W × H) | 80 × 0.56 × 0.23 inches |
| Connector type | 4‑pin, M4.5 × 0.35 mm thread |
| Sensitivity (differential) | 20 mV/g |
| Output common‑mode voltage | + VDC |
The package includes two mounting screws (model # 6746) and two mounting washers (model # 6743).
It uses a 4‑pin connector with an M4.5 × 0.35 mm thread.
