Technical parameters of 3023A1 triaxial accelerometer, including weight, size, mounting method, connector, material, performance, frequency response, element natural frequency, equivalent electrical noise, linearity, signal polarity, environment, maximum vibration, maximum shock, temperature range, environmental sealing, thermal sensitivity, power current range, output impedance, output bias voltage, discharge time constant, ground isolation, etc.
The Dytran 3023A1 is a compact tri‑axial accelerometer designed for high‑g measurement applications. It features a titanium‑alloy housing, a 4‑pin connector, and weighs only 4 grams.

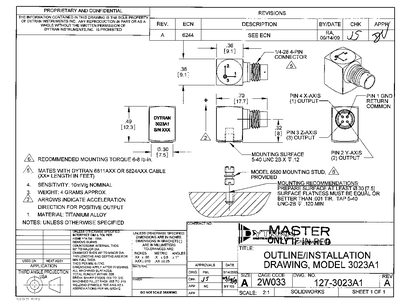

The datasheet lists key specifications such as weight, dimensions (0.49 × 0.36 × 0.36 in), 5‑40 tapped mounting hole, sensitivity of 10.0 mV/g (‑10 %/+15 %), full‑scale range of ±500 g per axis, frequency response up to 5 kHz on axes 1‑2 and 10 kHz on axis 3, maximum vibration ±600 g, shock rating 5000 g, supply voltage 18‑30 VDC, supply current 2‑20 mA, output impedance 100 Ω, and a discharge time constant of 0.3 s.
| Weight | 4 grams |
|---|---|
| Size (H × W × D) | 0.49 × 0.36 × 0.36 inches |
| Mounting | 5‑40 tapped hole in base |
| Connector | 4‑pin |
| Housing material | Titanium alloy |
| Full‑scale range | ±500 g per axis |
| Frequency response (axes 1‑2) | 1.5 Hz to 5 kHz |
| Frequency response (axis 3) | 1.5 Hz to 10 kHz |
| Maximum vibration | ±600 g |
| Maximum shock | 5000 g |
| Output impedance | 100 Ω (typ.) |
| Output bias voltage | +10 VDC |
| Discharge time constant | 0.3 s |
The accelerometer weighs 4 grams.
It uses a 5‑40 tapped hole in the base for mounting.
Axes 1 and 2 respond from 1.5 Hz to 5 kHz, while axis 3 responds from 1.5 Hz to 10 kHz.
