This product is a triaxial accelerometer with high sensitivity and small size.

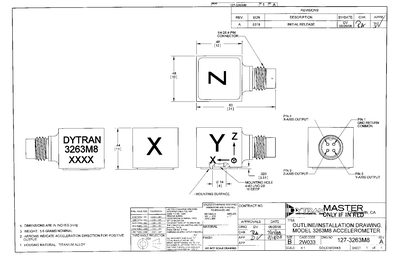

The Dytran 3263M8 is a miniature tri‑axial IEPE accelerometer designed for high‑sensitivity vibration measurement. The document provides the mechanical drawing, material specifications, and mounting details for the device.
Performance specifications include sensitivity, frequency response, supply current, bias voltage, temperature range, and noise characteristics. Electrical and environmental limits are also listed, along with recommended cable assemblies and accessories.
| Weight | 56 g (0.2 oz) |
|---|---|
| Mounting thread | 4‑40 UNC‑28 |
| Body material | Titanium alloy |
| Sensing element material | Ceramic |
| Frequency response range | 0.3 Hz – 10 kHz |
| Supply current | 2 – 20 mA |
| Bias voltage | +18 – +30 V |
| Operating temperature | -60 °F to +180 °F (-51 °C to 82 °C) |
| Seal | Hermetic |
| Resolution | 0.0008 g rms |
| Phase response | 5° |
The mounting thread is 4‑40 UNC‑28.
It operates from –60 °F to +180 °F (–51 °C to 82 °C).
The device requires a supply current of 2 to 20 mA.
The housing is made of titanium alloy.
