This document describes the installation and specifications of the triaxial accelerometer with model 3023A2. The accelerometer is lightweight, compact, and made of titanium alloy. It has high sensitivity and a wide frequency response range. It is suitable for various environments and has high vibration and shock resistance.

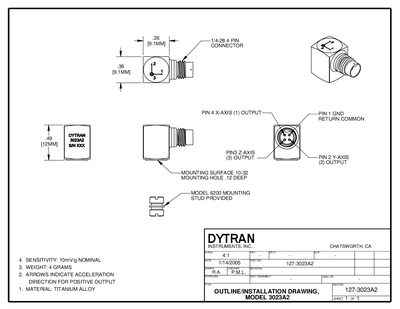

This datasheet describes the Dytran 3023A2 triaxial accelerometer, including its physical dimensions, mounting options, and material construction. It also outlines the connector type and provides an outline/installation drawing for proper integration.
Key performance parameters are listed, such as sensitivity (10 mV/g), measurement range (±500 g), frequency response (1.5 Hz to 5 kHz on axes 1&2, up to 10 kHz on axis 3), and environmental limits (temperature –60 °C to +250 °C, maximum shock 5000 g). Electrical characteristics like supply current, voltage range, output impedance, and bias voltage are also detailed.
| Weight | 4 grams |
|---|---|
| Size (H × W × D) | 0.49 × 0.36 × 0.36 inches |
| Mounting | 10‑32 tapped hole in base |
| Connector | 4‑pin |
| Housing/Connector Material | Titanium alloy |
| Sensitivity | 10.0 mV/g |
| Full‑scale Range | ±500 g per axis |
| Frequency Response (Axes 1&2) | 1.5 Hz to 5 kHz |
| Frequency Response (Axis 3) | 1.5 Hz to 10 kHz |
| Maximum Vibration | ±600 g |
| Maximum Shock | 5000 g |
| Operating Temperature Range | -60 °C to +250 °C |
| Supply Current (each axis) | 2 to 20 mA |
| Output Impedance | 100 Ω (typical) |
| Output Bias Voltage | +7 to +9 VDC |
| Discharge Time Constant | 0.3 s (nominal) |
The sensitivity is 10.0 mV per g.
The device can withstand a maximum shock of 5000 g.
It uses a 4‑pin connector that mates with Dytran cable assemblies (model 681 1Axx).
It operates from –60 °C up to +250 °C.
