This document is a specification for the 7600B5 variable capacitance accelerometer, including input range, frequency response, sensitivity, maximum shock, noise and other parameters.

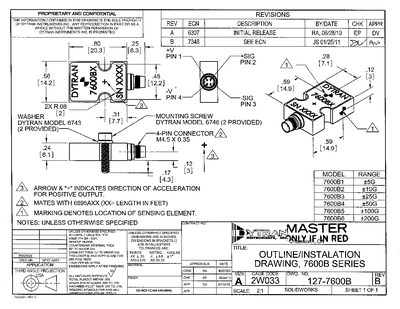

This document provides the outline and installation drawing for the Dytran 7600B1 variable capacitance accelerometer. It includes part numbers for mounting hardware (model #6743 washers and model #6746 screws) and a 4‑pin connector layout, with dimensions and tolerances expressed in inches.
The performance specification section lists physical, electrical, and environmental characteristics such as weight, size, input range, frequency response, sensitivity, noise, non‑linearity, temperature range, and sealing. Supplied accessories and notes on calibration certificates are also included.
| Weight (max) | 0.4 oz (3.6 grams) |
|---|---|
| Size (L × W × H) | 80 × 0.56 × 0.23 inches |
| Connector type | 4‑pin, M4.5 × 0.35 thread |
| Input range (g) | 15 g |
| Frequency response | 0‑2500 Hz |
| Operating temperature range | -40 °F to +176 °F |
| Seal | Hermetic |
| Maximum mechanical shock | 2000 g peak |
Two mounting screws (model #6746) and two mounting washers (model #6743) are supplied.
The excitation voltage range is 6 V to 22 V.
The devices are rated for a maximum mechanical shock of 2000 g peak.
A 4‑pin connector with M4.5 × 0.35 thread is used.
