This document describes the features and characteristics of the product family with model number 3403A. The family includes hermetically sealed models with specified range (Gpeak), resolution (grms), operating temperature (°F) and time constant (TC). It also mentions the miniature size, case isolation, supplied accessories, and performance specifications of the product.

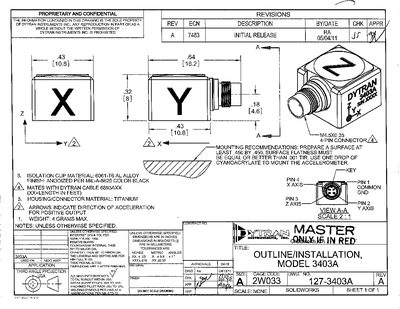

This document provides the outline drawing and mounting recommendations for the Dytran 3403A triaxial accelerometer. It specifies surface flatness, isolation cup material, housing material, and connector details needed for proper installation.
Performance specifications are listed, including weight, sensitivity, frequency range, electrical characteristics, and environmental limits such as maximum shock and vibration. The drawing also shows dimensions, tolerances, and finishing requirements.
| Maximum Weight | 4 grams |
|---|---|
| Frequency Range | 1.2 to 5000 Hz |
| Output Bias Voltage | +18 to +30 VDC |
| Supply Current (max) | 20 mA |
| Maximum Shock | 5000 gpk |
| Temperature Range | -60 to +250 |
The housing and connector are made of titanium.
Surface flatness must be equal or better than .001 TIR.
The isolation cup is made of 6061‑T6 aluminum alloy.
The device weighs up to 4 grams.
