This document is the performance specification of a triaxial accelerometer, including weight, connector, material, sensitivity, frequency response, natural frequency, equivalent electrical noise, linearity and etc.

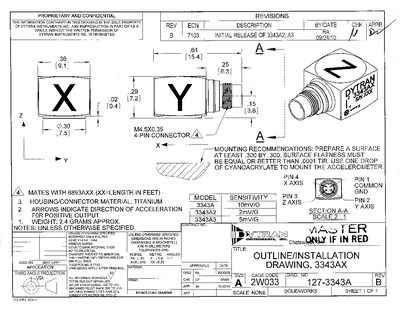

This document provides the outline drawing and installation recommendations for the Dytran 3343AX accelerometer. It details the required mounting surface dimensions, recommended adhesive, and connector configuration.
The second page lists the key physical, electrical, and environmental specifications of the sensor, such as weight, sensitivity, frequency response, supply current range, and operating temperature limits.
| Range (Full Scale) | 42500 g |
|---|---|
| Frequency Response | 1.2 to 5000 Hz |
| Supply Current Range | 2 to 20 mA |
| Compliance Voltage Range | +18 to +30 VDC |
| Operating Temperature | -51 °C to +121 °C |
The surface should be at least 0.300 by 0.300 inches with flatness equal to or better than .0001 TIR.
It uses a 4‑pin connector with a titanium housing.
Use one drop of cyanoacrylate to mount the accelerometer.
The device should not be powered above 20 mA; the typical range is 2 to 20 mA.
