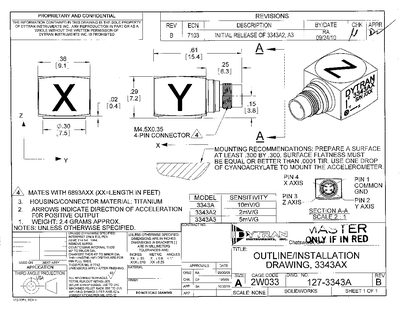

Dytran 3343AX Accelerometer Installation Drawing
This document provides a detailed outline and installation drawing for the Dytran 3343AX triaxial IEPE accelerometer. It includes mounting recommendations, surface flatness requirements, adhesive guidance, and a 4‑pin connector description that mates with Dytran cable assembly model 6893AXX.
The second page lists the physical, performance, electrical, and environmental specifications of the device, such as weight, sensitivity, measurement range, frequency response, supply current, voltage limits, shock and vibration ratings, temperature range, and hermetic sealing.
Dytran 3343AX specifications
| Weight | 0.084 oz |
|---|---|
| Full‑Scale Range | 41000 g |
| Frequency Response | 1.2 to 5000 Hz |
| Supply Current Range | 2 to 20 mA |
| Compliance Voltage Range | +18 to +30 VDC |
| Output Bias Voltage | 7.5 to 9.5 VDC |
| Maximum Shock | 3000 gpk |
| Maximum Vibration | 600 gpk |
| Temperature Range | ~60 to +250 °F |
| Environmental Seal | Hermetic |
All Dytran 3343AX documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What surface flatness is required for mounting?
The mounting surface must be at least .300 × .300 inches with flatness equal to or better than .0001 TIR.
Which adhesive should be used to mount the accelerometer?
Use one drop of cyanoacrylate to mount the accelerometer.
What size mounting surface is required for the 3343AX?
The surface should be at least 0.300 by 0.300 inches with flatness equal to or better than .0001 TIR.
What type of connector does the 3343AX use?
It uses a 4‑pin connector with a titanium housing.
What type of connector does the 3343AX use?
The 3343AX uses a 4‑pin connector.
From: Dytran 3343AX Accelerometer Outline and Installation Drawing
How should the accelerometer be mounted?
Prepare a flat surface at least 0.300 × 0.300 in and use a drop of cyanoacrylate to mount the device.
From: Dytran 3343AX Accelerometer Outline and Installation Drawing
