This product is a triaxial accelerometer with model number 3333M2T. It features ultra low frequency response, ultra low noise level and case isolation. The product weighs 0.14 oz, has a maximum acceleration range of +/-500Gpeak and a maximum resolution of 0.0036Grms. The frequency range is 0.65-10,000Hz.

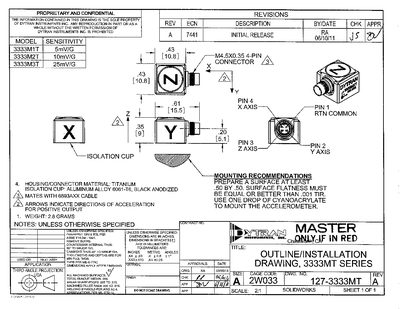

This two‑page drawing provides the mechanical layout, connector details, and mounting recommendations for the Dytran 127-3333MT triaxial IEPE accelerometer. It includes revision history, part numbers, and material specifications for the housing and isolation cup.
The document also lists key performance specifications such as sensitivity, frequency range, noise floor, and electrical requirements, along with environmental limits and recommended mounting procedures (e.g., use a drop of cyanoacrylate on a .50 × .50 in. flat surface).
| Sensitivity (3333M1T) | 5 mV/g |
|---|---|
| Sensitivity (3333M2T) | 10 mV/g |
| Sensitivity (3333M3T) | 25 mV/g |
| Weight | 2.8 grams |
| Housing material | Titanium Ti‑6Al‑4V |
| Isolation cup material | Aluminum alloy 6061‑T6, black anodized |
| Supply current range | 2 to 20 mA |
| Compliance voltage range | +18 to +30 VDC |
| Frequency range | 65 – 10 000 Hz |
| Resonance frequency | > 24 kHz |
| Noise floor | 0.0036 Grms |
Apply one drop of cyanoacrylate to the prepared surface before mounting the accelerometer.
The mounting surface must have a flatness equal to or better than .001 TIR.
The accelerometer weighs 2.8 grams.
