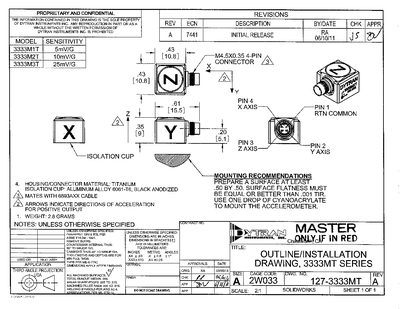

DYTRAN 127-3333MT OUTLINE/INSTALLATION DRAWING(3)
This document provides the outline and installation drawing for the Dytran 3333MT triaxial IEPE accelerometer. It details the housing and connector materials (titanium housing, aluminum alloy isolation cup), mounting recommendations, and physical dimensions, including a 4‑pin M4.5×0.35 connector that mates with Dytran cable model 6893AXX.
Performance specifications are listed for the 3333MT family, covering sensitivity, frequency range, supply current, output bias voltage, and environmental limits such as operating temperature and shock tolerance. The drawing also includes revision history and reference numbers for manufacturing and quality control.
Dytran 127-3333MT specifications
| Sensitivity (3333M3T) | 25 mV/g |
|---|---|
| Weight | 2.8 grams |
| Supply Current Range | 2 to 20 mA |
| Output Bias Voltage | +18 to +30 VDC |
| Operating Temperature (TEDS) | -40°C to +85°C |
| Frequency Range | 65–10,000 Hz |
All Dytran 127-3333MT documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What is the recommended mounting method for the 3333MT accelerometer?
Prepare a surface at least .50 × .50 inches with flatness equal to or better than .001 TIR and apply one drop of cyanoacrylate to mount the accelerometer.
What is the sensitivity of the 3333M3T model?
The 3333M3T model has a sensitivity of 25 mV per g.
What adhesive should be used to mount the accelerometer?
Apply one drop of cyanoacrylate to the prepared surface before mounting the accelerometer.
What surface flatness is required for mounting?
The mounting surface must have a flatness equal to or better than .001 TIR.
What mounting adhesive should be used for the Dytran 127-3333A accelerometer?
Apply one drop of cyanoacrylate to mount the accelerometer.
What is the weight of the Dytran 127-3333A accelerometer?
The accelerometer weighs approximately 2.3 grams (0.08 oz).
