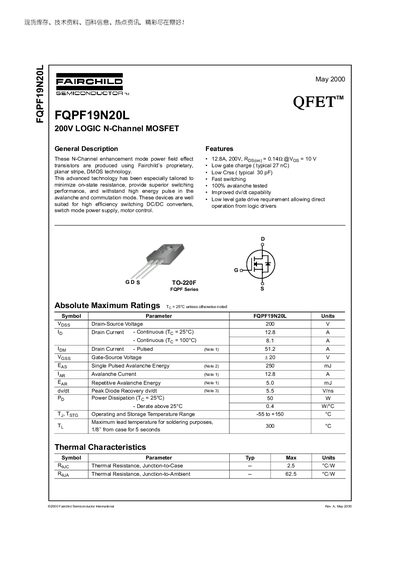

The FQPF19N20L is a 200 V logic N‑Channel MOSFET built with Fairchild’s planar stripe DMOS technology. It is designed for high‑efficiency switching applications such as DC/DC converters, switch‑mode power supplies, and motor control, offering low on‑state resistance and fast switching performance.
Key features include a continuous drain current of 12.8 A, low gate charge (typical 27 nC), low output capacitance (typical 30 pF), and 100 % avalanche testing. The device is supplied in a TO‑220F package and operates over a temperature range of –55 °C to +150 °C.
| Drain‑Source Voltage (VDS) | 200 V |
|---|---|
| Continuous Drain Current (ID) @ 25 °C | 12.8 A |
| Gate‑Source Voltage (VGS) | +20 V |
| Power Dissipation (PD) @ 25 °C | 50 W |
| Operating Temperature Range | -55 °C to +150 °C |
| Package | TO‑220F |
The device can handle a continuous drain current of 12.8 A at 25 °C.
It is supplied in a TO‑220F package.
