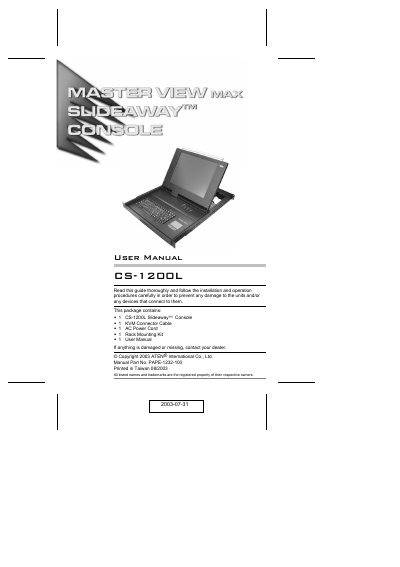

This document introduces the features and characteristics of the CS-1200L KVM console, including installation and operation.
The CS-1200L is a 1U rack‑mountable Slideaway™ KVM console with a 15" LCD, full‑size keyboard and touchpad. It connects to Master View KVM switches via the supplied KVM connector cable and offers space‑saving benefits without needing the switch module.
The manual covers safety warnings, hardware requirements, front and rear panel descriptions, step‑by‑step installation, and detailed specifications such as connectors, video resolution, environmental limits, and physical dimensions.
| Keyboard connector | 1 x 6 pin mini‑DIN female |
|---|---|
| Mouse connector | 1 x 6 pin mini‑DIN female |
| Video connector | 1 x HDB‑15 male |
| Power connector | 1 x AC Input socket |
| Maximum video resolution | 1024 x 768 |
| Operating temperature | 0 °C to 50 °C |
| Storage temperature | -20 °C to 60 °C |
| Humidity range | 0 % to 80 % RH non‑condensing |
| Weight | 12.2 kg |
| Dimensions (L×W×H) | 59.59 × 48.28 × 4.44 cm |
It supports video resolutions up to 1024 × 768.
The console includes a 6‑pin mini‑DIN keyboard connector, a 6‑pin mini‑DIN mouse connector, an HDB‑15 video connector, and an AC input socket.
