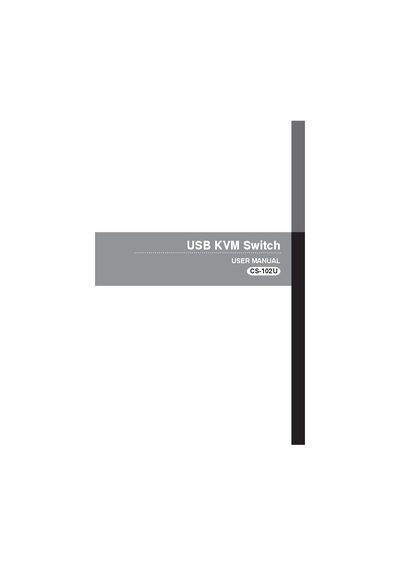

This manual introduces the features and usage of the CS-102U USB KVM switch.
The CS-102U is a dual‑function 2‑port KVM switch with an integrated 2‑port USB hub, allowing a single console to control two computers and share up to two USB peripherals. Installation requires only standard USB and video cables, with no additional software needed.
The manual covers package contents, system requirements, front and rear panel descriptions, specifications, and warranty information, providing step‑by‑step guidance for setup and use.
| Computer Connections | 2 |
|---|---|
| USB Type A Ports (Peripheral) | 4 |
| USB Type B Ports (Link to Computers) | 2 |
| Video Connectors (Console) | 1 x HDB-15 Female |
| Video Connectors (Computers) | 2 x HDB-15 Male |
| Power Input | DC 5V Jack |
| Power Consumption | DC 5V 11 mA (max.) |
| Scan Interval | 5 sec |
| USB Specification | 1.1 Compliant |
| Operating Temperature | 5‑40 °C |
| Storage Temperature | -20‑60 °C |
| Humidity | 0‑80 % RH (non‑condensing) |
| Weight | 150 g |
| Dimensions (L×W×H) | 120 × 67 × 44 mm |
The CS-102U can control two computers from a single console.
It can share up to two USB peripheral devices between the connected computers.
No software is required; the unit works with standard USB cables only.
The unit consumes up to 11 mA at 5 V DC.
