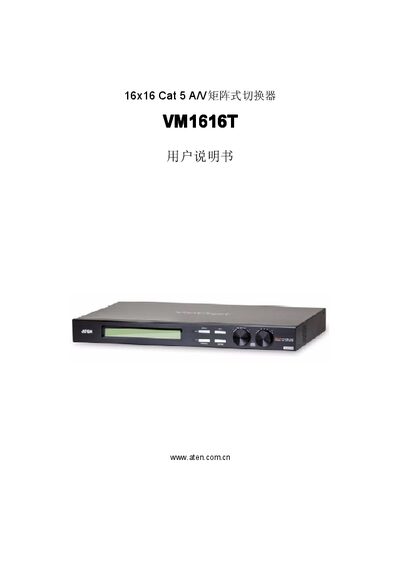

User manual for the ATEN VM1616T 16x16 Cat‑5 A/V matrix switch covering installation, operation and troubleshooting.
This manual provides detailed information on the ATEN VM1616T 16x16 Cat 5 A/V matrix switch, including product features, hardware requirements, and connection options. It guides users through rack‑mount installation, grounding, and wiring, as well as local and remote operation via the LCD panel or GUI.
The document also contains the RS‑232 command set for serial control, a full specifications table, safety instructions, and a troubleshooting section to resolve common issues such as audio/video channel mismatches. This manual is written in Chinese.
| Audio output | Balanced 5‑pin terminal, stereo |
|---|---|
| Video output | HDMI 1.5 male (blue) |
| Ethernet port | 1 × RJ‑45 |
| Input voltage rating | 100‑240 V~, 50‑60 Hz, 1.0 A |
| Power consumption | 120 V/34 W; 230 V/35 W |
| Operating temperature | 0 – 50 °C |
| Weight | 3.63 kg |
| Dimensions (L×W×H) | 43.24 × 27.12 × 44.0 cm |
Switch the audio, video and RS‑232 signals to the same channel, or manually adjust the audio device’s volume.
Visit ATEN’s online support center at the global or regional URLs listed in the manual and complete the product registration.
