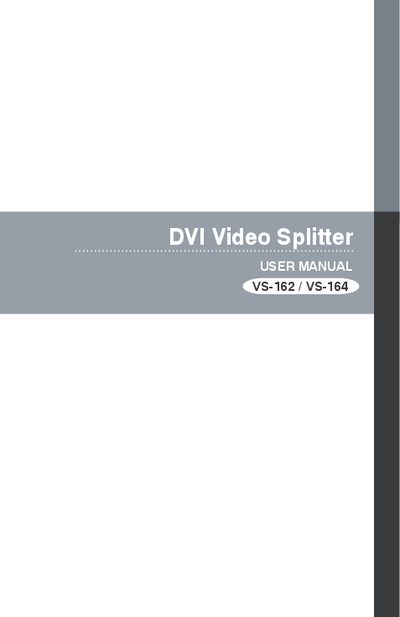

This document introduces the user manual and FCC information of the VS-162 / VS-164 DVI video splitter. The equipment has been tested and found to comply with the Class B digital device limits of the FCC rules, providing reasonable protection against harmful interference. It is also RoHS compliant. Users can register their product at the online support center.
The VS-162 (2‑port) and VS-164 (4‑port) DVI video splitters duplicate a DVI video and audio source to multiple displays, supporting cascaded configurations for up to 64 monitors. They are designed for broadcasting, training, and classroom environments where a single source must feed several monitors.
This manual covers package contents, system requirements, step‑by‑step installation, detailed specifications, pin assignments, troubleshooting tips, and warranty information, helping users set up and maintain the splitters safely and effectively.
| Video Input | 1 x DVI port (F) |
|---|---|
| Audio Input | 1 x Audio jack |
| Video Output (VS-162) | 2 x DVI ports (F) |
| Audio Output (VS-162) | 2 x Audio jacks |
| Power Supply | DC 5.3V jack |
| Maximum Resolution | 1920 × 1200 |
| Power Consumption (VS-162) | 3.4 W |
| Signal Range | 5 m (15 ft) |
| Operating Temperature | 0 °C to 50 °C |
| Weight (VS-162) | 0.62 kg |
| Dimensions (L × W × H) | 21.0 × 8.8 × 5.55 cm |
A DC 5.3 V power adapter is required.
When cascaded to three levels, the VS-164 can handle up to 64 monitors.
The splitters support a maximum single‑link video resolution of 1920 × 1200.
The source computer must have a DVI‑I or DVI‑A display port; an optional audio out port can be used for audio.
