The technical parameters of CZL-YB-7A type resistance strain gauge load cell, including rated load, comprehensive accuracy, sensitivity, nonlinearity, lag, repeatability, creep, zero point, output, zero point temperature influence, output temperature influence, working temperature range, input impedance, output impedance, insulation resistance, safety overload, limit overload, recommended excitation voltage, maximum excitation voltage, protection class, material, cable, etc.

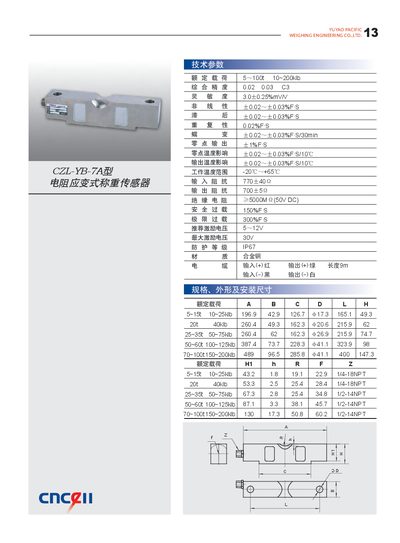

This one‑page datasheet provides the key technical data for the Yuyao Pacific resistance strain weight sensor. It lists the rated load capacities, measurement accuracy, temperature effects, and mechanical dimensions for various load classes.
The sheet also includes electrical parameters such as excitation voltage, output impedance, and environmental protection rating (IP67), as well as safety factors and recommended installation conditions. This manual is written in Chinese.
| Accuracy | 0.02‑0.03 % |
|---|---|
| Maximum Excitation Voltage | 30 V |
| IP Rating | IP67 |
The maximum excitation voltage is 30 V.
The sensor is rated IP67 for dust and water protection.
